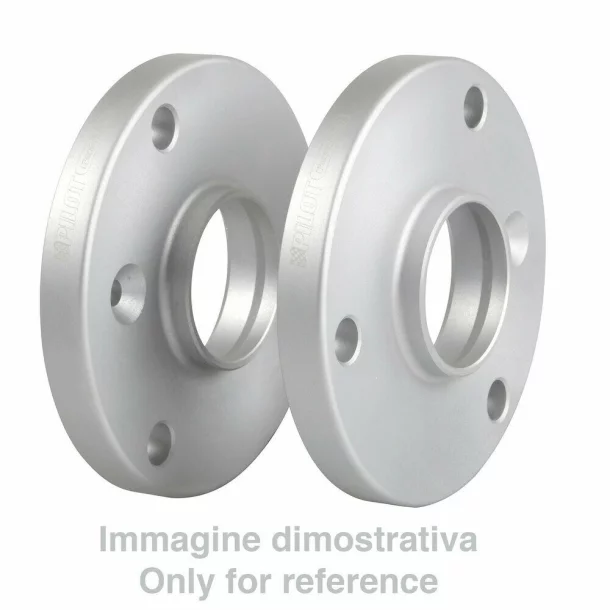

🏷️ 20 mm Aluminum Wheel Spacers, Set of 2, B7, 4x100, CB 57.1

🔒 Improved Stability and a Sportier Look for Your Vehicle

🔧 CNC-Machined Aluminum Wheel Spacers for Seat, Škoda and Volkswagen Models

The PILOT B7 wheel spacer kit is manufactured from high-quality aluminum alloy and precision CNC-machined to ensure exact tolerances and a perfect fit for every compatible vehicle.

Each spacer is machined from a solid aluminum billet and moves the wheel 20 mm outward, providing a sportier appearance, improved wheel stance, and additional clearance for certain wheels or brake components.

The 57.1 mm center bore ensures precise hub centering, while the 4x100 bolt pattern is specifically designed for the compatible vehicle applications.

Important: The kit includes the screws required to secure the spacers to the hub only for vehicles that require this mounting system. Wheel bolts are not included and must be ordered separately.

✔️ Benefits

• Manufactured from high-quality aluminum alloy

• High-precision CNC machining

• 20 mm thickness per spacer

• 4x100 bolt pattern

• 57.1 mm center bore (CB)

• Accurate hub-centric fit

• Provides a sportier and more aggressive vehicle appearance

• Positions the wheels closer to the fenders

• May provide additional clearance for certain wheels and brake calipers

• Excellent corrosion resistance

• Compatible with numerous Seat, Škoda, and Volkswagen models

📦 Package Contents

• 2 × 20 mm aluminum wheel spacers

• 2 × hub mounting screws, where required

• Installation instructions

Note: Wheel bolts are NOT included and must be purchased separately.

🔧 Technical Specifications

• Model: B7

• Spacer thickness: 20 mm

• Number of holes: 4

• Bolt pattern (PCD): 4x100

• Center bore (CB): 57.1 mm

• Thread size: M12

• Material: Aluminum alloy

• Manufacturing process: CNC machined

• Color: Natural aluminum

• Quantity: 2 pieces

⚠️ Important Installation Recommendations

Installation must be carried out by a qualified technician or an authorized workshop.

• Thoroughly clean the hub mounting surface before installing the spacers.

• Use only wheel bolts with the same thread type, pitch, and seat profile as the original ones.

• Wheel bolts must be extended according to the thickness of the spacer installed.

• For 20 mm spacers, wheel bolts approximately 20 mm longer than the original ones are generally required.

• After installation, ensure there is at least 2 mm clearance between the end of the bolt and any component located behind the hub or inside the wheel assembly.

• Tighten the wheel bolts in a criss-cross pattern using a calibrated torque wrench.

• Always follow the tightening torque specified by the vehicle manufacturer.

• Recheck the tightening torque after the first few kilometers of driving.

• Inspect the wheel bolts periodically every 2,000–3,000 km.

• When using aftermarket wheels or modified vehicles, always verify the clearance between the wheels, suspension, and bodywork.

• For vehicles marked with "Verify the original bolt", the compatibility of the original wheel bolts must be checked before installation.

• For vehicles marked with "4 bolts", verify the mounting system compatibility before installation.

⚠️ Liability Disclaimer

Cridem cannot be held responsible for any material damage, accidents, or technical issues resulting from incorrect application selection, improper installation, or use of the product for purposes other than those for which it was designed.

PILOT wheel spacers are primarily intended for motorsport, exhibitions, or off-road use. Their use on public roads is permitted only if the product, vehicle, and installation comply with the applicable legislation in the country of use.

🚗 Compatibility

Seat

• Arosa (02/1997–06/2004)

• Ibiza 3-door (05/1993–12/2001)

• Ibiza 5-door (05/1993–12/2001)

• Mii 3-door (05/2012–09/2018)

• Mii 5-door (05/2012–07/2020)

Škoda

• Citigo 3-door (05/2012–08/2016)

• Citigo 3-door (09/2016–10/2019)

• Citigo 5-door (05/2012–08/2016)

• Citigo 5-door (09/2016–10/2019)

Volkswagen

• Caddy (11/1995–12/2003)

• Golf III (08/1992–09/1997) (4 bolts)

• Golf IV Cabrio (10/1997–10/2003) (4 bolts)

• Lupo (06/1998–07/2005)

• Polo 3-door (08/1994–10/2001) (Verify the original bolt)

• Polo 5-door (08/1994–10/2001)

• Up! 3-door (01/2012–08/2016)

• Up! 3-door (09/2016–12/2023)

• Up! 5-door (01/2012–08/2016)

• Up! 5-door (09/2016–12/2023)

• Up! Cross (10/2013–08/2016)

• Up! Cross (09/2016–09/2019)

🔍 Why Choose the PILOT B7 Wheel Spacers?

PILOT B7 wheel spacers are manufactured from high-quality aluminum alloy and precision CNC-machined to ensure a safe installation and a perfect fit. With a 20 mm thickness, 4x100 bolt pattern, 57.1 mm center bore, and M12 thread compatibility, they are specifically designed for a wide range of Seat, Škoda, and Volkswagen models, delivering a sportier appearance and improved wheel positioning.

🛒 Order Now!

Choose the PILOT B7 Aluminum Wheel Spacer Kit – 20 mm, 4x100, CB 57.1 and benefit from premium materials, high-precision CNC machining, and vehicle-specific compatibility for a wide range of Volkswagen Group vehicles.

❓Frequently Asked Questions (FAQ)

❓Does the kit include two or four spacers?
The package includes 2 wheel spacers, enough for one axle.

❓Are wheel bolts included?
No. The kit only includes the hub mounting screws where required. Wheel bolts must be ordered separately.

❓What wheel bolt length should I use?
As a general rule, wheel bolts should be approximately 20 mm longer than the original bolts to match the spacer thickness.

❓Should installation be carried out by an authorized workshop?
Yes. The manufacturer recommends installation by a qualified technician or authorized workshop to ensure safe and correct fitting.

❓Should I recheck the wheel bolt torque after installation?
Yes. The tightening torque should be checked after the first few kilometers of driving and then every 2,000–3,000 km.

❓Can these spacers be used with aftermarket wheels?
Yes, provided that compatibility between the wheels, bolts, suspension, and bodywork is verified before installation.

❓Are there any models requiring additional checks?
Yes. Vehicles marked with "Verify the original bolt" or "4 bolts" require additional compatibility checks before installation.

❓Can these wheel spacers be used on public roads?
PILOT wheel spacers are primarily intended for motorsport, exhibitions, or off-road use. Public road use is permitted only where the product, vehicle, and installation comply with local regulations.
