Spherical bolts, R12, head 17mm, thread M12x1.5, thread length 60mm, 10 pcs - TS4
๐ท๏ธ Spherical bolts, R12, head 17mm, thread M12x1.5, thread length 60mm, 10 pcs - TS4
๐ฉ Reliable wheel fastening with an R12 spherical seat and 60 mm thread length
๐ Pilot Tuning Project TS-4 set of 10 wheel bolts

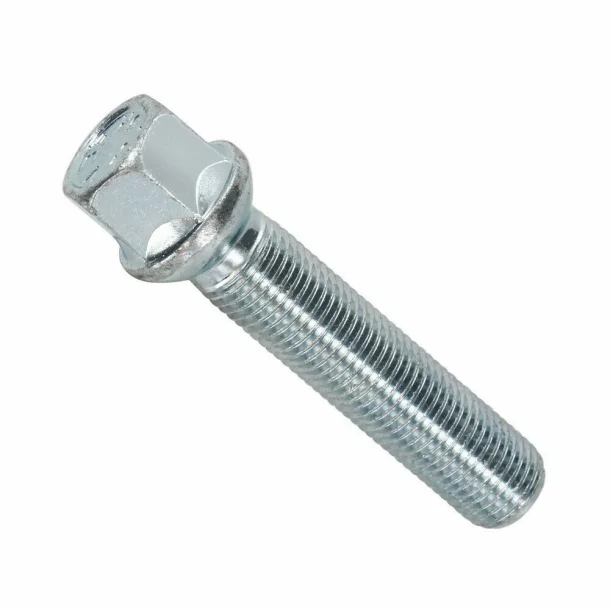

The Pilot Tuning Project TS-4 (LAM48814) set includes 10 wheel bolts featuring an R12 spherical seat, M12x1.5 thread, 60 mm length, and 17 mm hexagonal head.
Manufactured from 40Cr alloy steel, with a 10.9 strength class, the bolts feature a 12 ฮผm zinc coating for corrosion protection.
โ๏ธ R12 spherical seat for matching wheel bolt holes
โ๏ธ M12x1.5 thread, 60 mm length
โ๏ธ 17 mm hexagonal head
โ๏ธ 40Cr alloy steel, strength class 10.9
โ๏ธ 12 ฮผm zinc coating
โ๏ธ Set of 10 wheel bolts

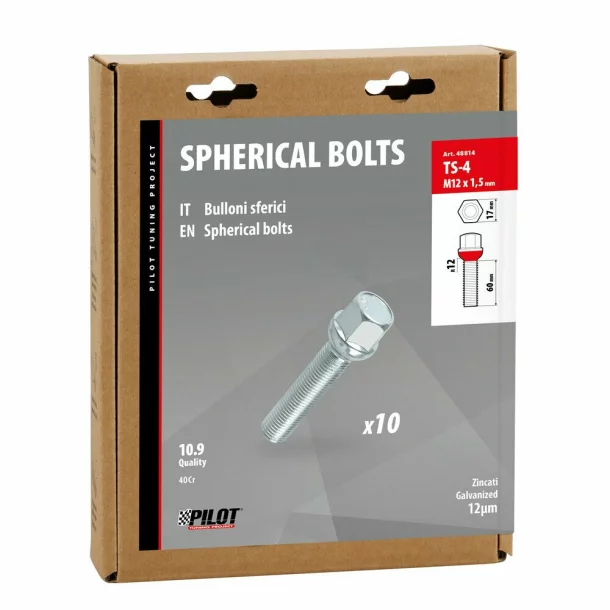

๐ฆ Package contents
10 Pilot Tuning Project TS-4 wheel bolts
Original Pilot Tuning Project packaging
๐ง Technical specifications
Specification | Value |
|---|---|
Brand | Pilot Tuning Project |
Product code | LAM48814 |
Model | TS-4 |
Seat type | Spherical |
Seat radius | R12 |
Thread | M12x1.5 |
Length | 60 mm |
Hex head | 17 mm |
Material | 40Cr |
Strength class | 10.9 |
Coating | Zinc-plated |
Zinc coating thickness | 12 ฮผm |
Quantity | 10 pcs |
๐ Compatibility table
Consecutive production periods have been combined where the vehicle model and fitting conditions remain identical. Manufacturer notes have been retained.
Brand | Model | Years | Notes |
|---|---|---|---|
Chrysler | Crossfire Coupรฉ | 11/03>12/07 | - |
Mercedes-Benz | A-Class 5-door | 05/97>08/04 | - |
Mercedes-Benz | A-Class Long | 06/01>08/04 | - |
Mercedes-Benz | C-Class 4-door | 05/93>04/00 | Check the original bolt |
Mercedes-Benz | C-Class 4-door | 05/00>01/07 | Check the original bolt |
Mercedes-Benz | C-Class Coupรฉ | 03/01>03/08 | Check the original bolt |
Mercedes-Benz | C-Class Estate | 05/96>12/07 | Check the original bolt |
Mercedes-Benz | E-Class 4-door | 12/84>05/95 | Check the original bolt |
Mercedes-Benz | E-Class 4-door | 06/95>02/02 | - |
Mercedes-Benz | E-Class Estate | 05/96>02/03 | Check the original bolt |
Mercedes-Benz | CLK | 01/96>12/09 | Check the original bolt |
Mercedes-Benz | SLK | 09/96>03/04 | - |
Mercedes-Benz | SLK | 04/04>03/11 | Check the original bolt |
Mercedes-Benz | Vaneo | 10/01>02/05 | - |
Volkswagen | Golf III | 08/92>09/97 | 4-bolt wheel fastening |
Volkswagen | Golf IV Cabrio | 10/97>10/03 | 4-bolt wheel fastening |
Important: Manufacturer-listed compatibility must also be checked against the actual wheels, seat profile, thread dimensions and required bolt length. For vehicles marked in the table, always compare the original wheel bolt.
โ ๏ธ Installation recommendations
Use only with wheels requiring a compatible R12 spherical seat.
Verify the thread size and length before installation.
Follow the tightening torque specified by the vehicle or wheel manufacturer.
Never substitute conical-seat bolts for spherical-seat bolts without confirming compatibility.
โ Frequently Asked Questions (FAQ)
โ Q: What does an R12 spherical seat mean?
โ A: It refers to a rounded contact surface between the bolt and wheel, with a nominal radius of 12 mm.
โ Q: What thread size do these bolts have?
โ A: They feature an M12x1.5 metric thread with a length of 60 mm.
โ Q: What wrench size is required?
โ A: A 17 mm hexagonal wrench or socket is required.
โ Q: Are they compatible with every Mercedes-Benz wheel?
โ A: No. Compatibility depends on the vehicle model, production year and wheel specifications. Check the table and original bolt.
โ Q: Can they be used with alloy wheels?
โ A: Yes, provided the wheels require an R12 spherical seat and the specified bolt dimensions.
โ Q: Are the bolts corrosion-resistant?
โ A: They feature a 12 ฮผm zinc coating for corrosion protection.
โ Q: How many bolts are included?
โ A: The package contains 10 Pilot Tuning Project TS-4 wheel bolts.
๐ท๏ธ Spherical bolts, R12, head 17mm, thread M12x1.5, thread length 60mm, 10 pcs - TS4
Set of 10 Pilot Tuning Project TS-4 wheel bolts featuring an R12 spherical seat, M12x1.5 thread and 60 mm length. Manufactured from 40Cr alloy steel, strength class 10.9, with a 17 mm hex head and 12 ฮผm zinc coating. Suitable for wheels matching these specifications.
| Manufacturer - brand | Pilot Lampa Italy | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Thread | M12x1,5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Seat | R12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Length mm | 60.00mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Head mm | 17.00mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rim | Original | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
