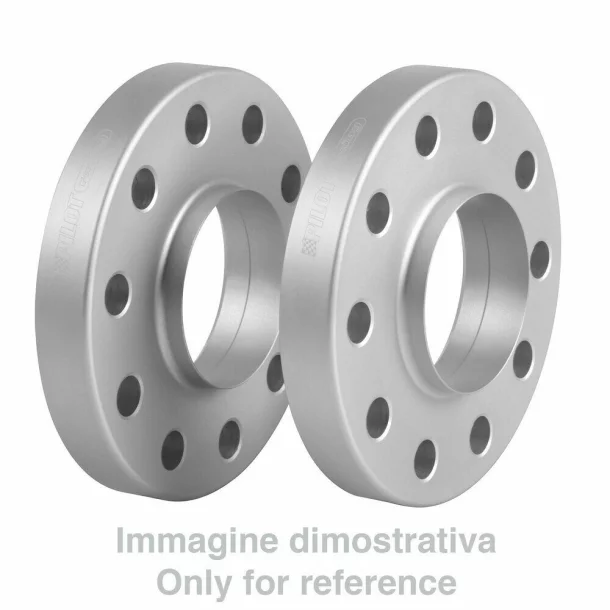

🏷️ Aluminium Wheel Spacers 16 mm, 2 pcs, A11, 4x108, CB 65.1

🔒 Widen the track for a sportier appearance and optimal wheel positioning

🔧 Precision-machined aluminium wheel spacers for a dedicated fit

The PILOT A11 wheel spacer kit is manufactured from high-quality aluminium alloy and precision CNC-machined to ensure a perfect fit for compatible vehicles. The spacers move the wheels 16 mm outward, giving the vehicle a more aggressive appearance while providing the clearance required for certain wheel or brake system configurations.

Each spacer is machined from a solid aluminium bar and designed for precise hub centring, ensuring secure installation when the installation instructions are followed and the correct wheel bolts are used.

Important: The kit includes the screws required to secure the spacers to the hub (only for vehicles that require this system). Wheel mounting bolts must be ordered separately in the appropriate length.

✔️ Benefits

• Manufactured from high-strength aluminium alloy

• Precision CNC machining for accurate tolerances

• 16 mm thickness per spacer

• Enhances the vehicle's appearance by positioning the wheels closer to the fenders

• Can provide the additional clearance required for certain wheel or brake system configurations

• Precise hub-centric fit

• Excellent corrosion resistance

• Dedicated fit for compatible vehicle applications

📦 Package Contents

• 2 × 16 mm aluminium wheel spacers

• 2 × Screws for securing the spacers to the hub (where required)

• Installation instructions

Note: Wheel mounting bolts are NOT included and must be purchased separately.

🔧 Technical Specifications

• Model: A11

• Spacer thickness: 16 mm

• Number of holes: 4

• Bolt pattern (PCD): 4x108

• Centre bore (CB): 65.1 mm

• Thread diameter: M12

• Material: Aluminium alloy

• Manufacturing process: CNC machined

• Colour: Natural aluminium

⚠️ Important Installation Recommendations

• Installation must be carried out by a qualified technician or an authorised automotive workshop.

• Use only wheel bolts with the same thread size, thread pitch and seat type as the original bolts.

• The wheel bolts must be longer by the thickness of the spacer.

• After installation, ensure there is a minimum clearance of 2 mm between the end of the wheel bolt and the inside of the wheel.

• Check the bolt tightening torque after the first few kilometres and subsequently every 2,000–3,000 km.

• For vehicles fitted with modified suspension systems or aftermarket wheels, all clearances between the wheels, tyres and bodywork must be carefully checked.

• For models where specified by the manufacturer, verify the compatibility of the original wheel bolts.

• For Citroën DS3 and DS3 Cabrio models, it is recommended to balance the wheels directly on the vehicle after installation.

⚠️ Liability Disclaimer

Cridem accepts no responsibility for property damage, personal injury or any other consequences resulting from incorrect installation or improper use of this product.

PILOT wheel spacers are intended exclusively for racing, exhibition or off-road vehicles. Their use on public roads is permitted only if the product and installation comply with the applicable legislation in the country of use.

🚗 Vehicle Compatibility

Citroën

• Berlingo Multispace (05/1996–10/2002)

• Berlingo Multispace (11/2002–03/2008)

• Berlingo Multispace (04/2008–03/2012)

• Berlingo Multispace (04/2012–03/2015)

• Berlingo Multispace (04/2015–08/2018)

• Berlingo Van (05/1996–10/2002)

• Berlingo Van (11/2002–03/2008)

• Berlingo Van (04/2008–03/2012)

• Berlingo Van (04/2012–03/2015)

• Berlingo Van (04/2015–05/2018)

• C2 (10/2003–03/2010)

• C3 (05/2002–08/2005)

• C3 (09/2005–10/2009)

• C3 (11/2009–04/2013)

• C3 (05/2013–10/2016)

• C3 (11/2016–07/2020)

• C3 (08/2020–06/2024)

• C3 Classic (11/2009–12/2010)

• C3 Picasso (01/2009–10/2012)

• C3 Picasso (11/2012–03/2017)

• C3 Pluriel (05/2003–11/2010)

• C3 XTR (03/2004–08/2005)

• C3 XTR (09/2005–12/2008)

• C4 3-door (01/2005–10/2010)

• C4 5-door (01/2005–10/2010)

• C4 5-door (11/2010–02/2015)

• C4 5-door (03/2015–02/2018)

• C4 Cactus (05/2014–01/2018)

• C4 Cactus (02/2018–10/2020)

• C4 Grand Picasso (10/2006–09/2013)

• C4 Picasso (03/2007–05/2013)

• C5 Sedan (03/2001–04/2008)

• C5 Estate (03/2001–04/2008)

• DS3 (03/2010–08/2014) – It is recommended to balance the wheels directly on the vehicle.

• DS3 Cabrio (11/2012–01/2016) – It is recommended to balance the wheels directly on the vehicle.

• DS4 (03/2011–10/2015)

• DS5 (12/2011–05/2015)

• Saxo 3-door (02/1996–09/2003)

• Saxo 5-door (02/1996–09/2003)

• Xsara 5-door (09/1997–12/2004)

• Xsara Estate (03/1998–12/2005)

• Xsara Coupé (03/1998–12/2004)

DS

• DS3 (09/2014–01/2016) – It is recommended to balance the wheels directly on the vehicle.

• DS3 (02/2016–05/2019) – It is recommended to balance the wheels directly on the vehicle.

• DS4 (11/2015–12/2018)

• DS4 Crossback (11/2015–12/2018)

• DS5 (06/2015–12/2018)

Peugeot

• 1007 (05/2005–05/2010)

• 106 (09/1991–09/1999)

• 106 (10/1999–06/2004)

• 2008 (06/2013–04/2016)

• 2008 (05/2016–11/2019)

• 205 (01/1983–12/1997)

• 206 3-door (09/1998–02/2009)

• 206 5-door (09/1998–02/2009)

• 206 CC (02/2001–03/2007)

• 206 Plus 3-door (03/2009–01/2013)

• 206 Plus 5-door (03/2009–01/2013)

• 206 SW (09/2002–06/2007)

• 207 3-door (05/2006–11/2012)

• 207 5-door (05/2006–11/2012)

• 207 CC (03/2007–08/2009)

• 207 CC (09/2009–05/2014)

• 207 Plus 3-door (02/2013–08/2014)

• 207 Plus 5-door (02/2013–08/2014)

• 207 SW (07/2007–08/2009)

• 207 SW (09/2009–12/2013)

• 208 3-door (04/2012–05/2015)

• 208 3-door (06/2015–07/2018)

• 208 5-door (04/2012–05/2015)

• 208 5-door (06/2015–10/2019)

Peugeot

• 3008 (05/2009–11/2013)

• 3008 (12/2013–09/2016)

• 306 5-door (03/1993–05/2001)

• 306 SW (03/1993–05/2001)

• 307 3-door (06/2001–08/2007)

• 307 5-door (06/2001–08/2007)

• 307 CC (01/2004–03/2009)

• 307 SW (05/2002–04/2008)

• 308 5-door (09/2007–02/2011)

• 308 5-door (03/2011–09/2013)

• 308 CC (04/2009–02/2011)

• 308 CC (03/2011–05/2014)

• 308 SW (05/2008–02/2011)

• 308 SW (03/2011–04/2014)

• 406 (04/1999–02/2005)

• 406 Estate (04/1999–02/2005)

• 607 (04/2000–12/2010)

• Partner (05/1996–03/2008)

• Partner (04/2008–02/2012)

• Partner (03/2012–08/2018)

• Partner Tepee (05/1996–12/2002)

• Partner Tepee (05/2008–02/2012)

• Partner Tepee (03/2012–02/2015)

• Partner Tepee (03/2015–08/2018)

• Ranch (05/1996–03/2008)

• Ranch 5-door (05/1996–03/2008)

🔍 Why choose PILOT wheel spacers?

PILOT wheel spacers are precision-manufactured from premium-quality aluminium alloy and provide an exact hub-centric fit. They are the ideal solution for improving your vehicle's appearance while creating the additional clearance required for specific wheel or brake system configurations.

🔍 Order Now

Choose the PILOT A11 16 mm aluminium wheel spacers for precise installation and dedicated compatibility with numerous Citroën, DS and Peugeot models.

❓Frequently Asked Questions (FAQ)

❓ Does this kit include two or four wheel spacers?
The kit includes two wheel spacers, enough for one axle.

❓ Are the wheel mounting bolts included?
No. The kit includes only the screws required to secure the spacers to the hub where applicable. Wheel mounting bolts must be ordered separately.

❓ Why is on-vehicle wheel balancing recommended for DS3 models?
For the models specified by the manufacturer, balancing the wheels directly on the vehicle helps minimise vibrations and ensures optimum performance after installation.

❓ Is it necessary to check the wheel bolts after installation?
Yes. It is recommended to check the tightening torque after the first few kilometres and then every 2,000–3,000 km.

❓ Can I use these wheel spacers with aftermarket wheels?
Yes, provided that sufficient clearance between the wheels, tyres, suspension and bodywork is checked before and after installation.

❓ Are these wheel spacers approved for public road use?
PILOT wheel spacers are primarily intended for racing, exhibition and off-road vehicles. Their use on public roads must comply with the applicable legislation in the country where they are used.
