🏷️ Aluminium Wheel Spacers 16 mm, 2 pcs, A24, 5x112, CB 57.1

🔒 Widen the track for a sportier appearance and optimal wheel positioning

🔧 Precision-machined aluminium wheel spacers for dedicated fitment

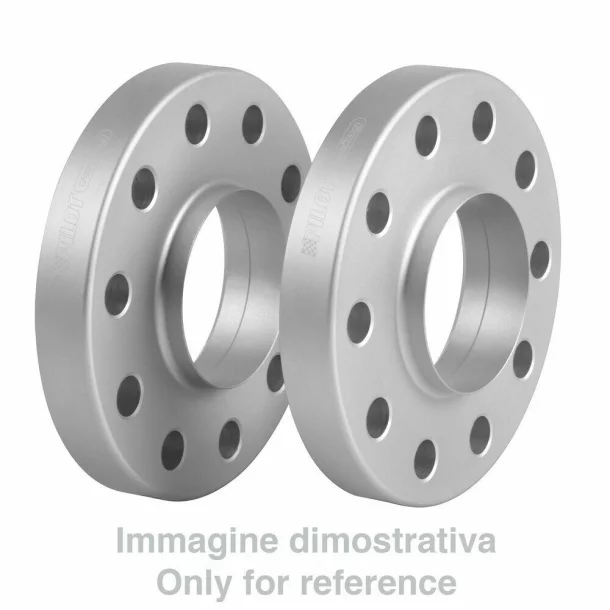

The PILOT A24 wheel spacer kit is manufactured from high-quality aluminium alloy and precision CNC-machined to ensure exact tolerances and a perfect fit for compatible vehicles.

Each spacer is machined from a solid aluminium alloy bar and moves each wheel 16 mm outward. This solution gives the vehicle a sportier appearance while providing the additional clearance required for certain wheel or brake system configurations.

The 57.1 mm hub-centric centre bore ensures precise centring on the hub, while the 5x112 bolt pattern is designed for compatible Audi, Ford, SEAT, Škoda and Volkswagen applications specified by the manufacturer.

Important: The kit includes the screws required to secure the spacers to the hub only for vehicles that use this mounting system. Wheel mounting bolts are not included and must be ordered separately in the correct length and configuration.

✔️ Benefits

• Manufactured from high-strength aluminium alloy

• Precision CNC machining for accurate tolerances

• 16 mm thickness per spacer

• 5x112 bolt pattern

• 57.1 mm centre bore

• Precise hub-centric fit

• Positions the wheels closer to the fenders

• Gives the vehicle a sportier appearance

• Can provide additional clearance for certain wheels or brake systems

• High corrosion resistance

• Dedicated fitment for compatible applications

📦 Package Contents

• 2 × 16 mm aluminium wheel spacers

• 2 × Screws for securing the spacers to the hub, where required

• Installation instructions

Note: Wheel mounting bolts are NOT included and must be purchased separately.

🔧 Technical Specifications

• Model: A24

• Spacer thickness: 16 mm

• Number of holes: 5

• Bolt pattern (PCD): 5x112

• Centre bore (CB): 57.1 mm

• Thread diameter: M14

• Material: Aluminium alloy

• Manufacturing process: CNC machining

• Colour: Natural aluminium

• Quantity: 2 pieces

⚠️ Important Installation Recommendations

• Installation must be carried out by a qualified technician or an authorised automotive workshop.

• Thoroughly clean the hub contact surface before installing the spacer.

• Use only wheel bolts with the same dimensions, thread pitch and seat type as the original fasteners.

• The wheel bolt length must be increased by the thickness of the spacer.

• For a 16 mm spacer, the wheel bolts should generally be 16 mm longer than the original bolts.

• After installation, verify that there is a minimum clearance of 2 mm between the end of the wheel bolt and the components located behind the hub or inside the wheel assembly.

• Tighten the wheel bolts in a criss-cross pattern using a torque wrench.

• Apply the tightening torque specified by the vehicle manufacturer.

• Recheck the tightening torque after the first few kilometres.

• Check the wheel bolts periodically every 2,000–3,000 km.

• For vehicles fitted with modified suspension systems or aftermarket wheels, all clearances between the wheels, tyres, suspension and bodywork must be checked.

• For models marked "front", install the spacers only on the front axle as specified by the manufacturer.

• For models requiring wheel balancing directly on the vehicle, this recommendation should be followed after installation.

⚠️ Liability Disclaimer

Cridem accepts no responsibility for property damage, personal injury or any other consequences resulting from the selection of an incompatible application, incorrect installation or improper use of this product.

PILOT wheel spacers are intended exclusively for racing, exhibition or off-road vehicles. Their use on public roads is permitted only if the product, vehicle and installation comply with the applicable legislation in the country of use.

🚗 Compatibility

Audi

• A3 3-door (05/2003–06/2008)

• A3 3-door (07/2008–08/2012)

• A3 3-door (09/2012–07/2016)

• A3 3-door (08/2016–11/2019)

• A3 Allstreet (03/2024–present)

• A3 Cabriolet (04/2008–02/2014)

• A3 Cabriolet (03/2014–04/2016)

• A3 Cabriolet (05/2016–06/2020)

• A3 Sedan (09/2013–06/2020)

• A3 Sportback (09/2004–06/2008)

• A3 Sportback (07/2008–10/2012)

• A3 Sportback (11/2012–07/2016)

• A3 Sportback (08/2016–04/2020)

• A3 Sportback (05/2020–02/2024)

• A3 Sportback (03/2024–present)

• A4 Sedan (11/1994–12/2000)

• A4 Sedan (01/2001–10/2003)

• A4 Sedan (11/2003–10/2004)

• A4 Sedan (11/2004–10/2007)

• A4 Avant (11/1995–08/2001)

• A4 Avant (09/2001–10/2003)

• A4 Avant (11/2003–10/2004)

• A4 Avant (11/2004–04/2008)

• A4 Cabriolet (05/2002–03/2008)

• A6 Sedan (07/1997–06/2001)

• A6 Sedan (07/2001–08/2004)

• A6 Sedan (09/2004–03/2011)

• A6 Allroad (06/2006–02/2012)

• A6 Avant (08/1994–07/1997)

• A6 Avant (08/1997–06/2001)

• A6 Avant (07/2001–02/2005)

• A6 Avant (03/2005–08/2011)

• A8 (01/1994–10/2002)

• Allroad (06/2000–05/2006)

• Q2 (11/2016–10/2020)

• Q2 (11/2020–04/2026)

• Q3 (10/2011–01/2015)

• Q3 (02/2015–12/2018)

• TT Coupé (09/2006–09/2014)

• TT Coupé (10/2014–12/2018)

• TT Coupé (01/2019–08/2023)

• TT Roadster (03/2007–09/2014)

• TT Roadster (10/2014–12/2018)

• TT Roadster (01/2019–08/2023)

Ford

• Galaxy (01/1995–08/2000)

• Galaxy (09/2000–08/2006)

SEAT

• Alhambra (07/2000–09/2010)

• Alhambra (10/2010–08/2015)

• Alhambra (09/2015–03/2021)

• Altea (04/2004–04/2009)

• Altea (05/2009–12/2014)

• Altea XL (01/2007–04/2009)

• Altea XL (05/2009–06/2015)

• Ateca (07/2016–10/2020)

• Ateca (11/2020–present)

• Exeo Sedan (05/2009–12/2012) – front

• Exeo ST (09/2009–12/2012) – front

• Leon (09/2005–04/2009)

• Leon (05/2009–12/2012)

• Leon 5-door (01/2013–09/2016)

• Leon 5-door (10/2016–05/2020)

• Leon SC (06/2013–03/2017)

• Leon SC (04/2017–09/2018)

• Leon ST (01/2014–12/2016)

• Leon ST (01/2017–05/2020)

• Leon X-Perience (03/2015–03/2019)

• Toledo (01/2005–09/2009)

Škoda

• Octavia 5-door (09/2004–01/2009)

• Octavia 5-door (02/2009–02/2013)

• Octavia 5-door (03/2013–12/2016)

• Octavia 5-door (01/2017–05/2020)

• Octavia Combi (01/2005–01/2009)

• Octavia Combi (02/2009–04/2013)

• Octavia Combi (05/2013–12/2016)

• Octavia Combi (01/2017–05/2020)

• Superb Sedan (05/2002–08/2008)

• Superb Sedan (09/2008–08/2013)

• Superb Sedan (09/2013–06/2015)

• Superb Combi (02/2010–08/2013)

• Superb Combi (09/2013–09/2015)

• Yeti (10/2009–12/2013) – front

• Yeti (01/2014–12/2017) – front

Volkswagen

• Caddy (03/2004–08/2015)

• Caddy (09/2015–11/2019)

• Caddy (12/2019–12/2020)

• Caddy Life (01/2004–08/2015)

• Caddy Life (09/2015–12/2020)

• Caddy Maxi (09/2007–03/2015)

• Caddy Maxi (04/2015–11/2019)

• Caddy Maxi (12/2019–12/2020)

• Caddy Maxi Life (09/2007–08/2015)

• Caddy Maxi Life (09/2015–12/2020)

• Eos (06/2006–12/2012)

• Golf Plus (05/2005–02/2009)

• Golf Plus (03/2009–07/2014)

• Golf V 3-door (11/2003–10/2008)

• Golf V 5-door (11/2003–10/2008)

• Golf V Variant (05/2007–09/2009) – wheels must be balanced directly on the vehicle

• Golf VI 3-door (11/2008–10/2012)

• Golf VI 5-door (11/2008–10/2012)

• Golf VI Cabriolet (09/2011–10/2014) – front

• Golf VI Variant (10/2009–09/2013) – front

• Golf VII 3-door (11/2012–02/2017)

• Golf VII 3-door (03/2017–12/2019)

• Golf VII 5-door (11/2012–02/2017)

• Golf VII 5-door (03/2017–12/2019)

• Golf VII Sportsvan (05/2014–08/2018)

• Golf VII Variant (10/2013–02/2017)

• Golf VII Variant (03/2017–05/2020)

• Golf VIII 5-door (01/2020–02/2024)

• Golf VIII 5-door (03/2024–present)

• Golf VIII Alltrack (01/2021–present)

• Golf VIII Variant (11/2020–02/2024)

• Golf VIII Variant (03/2024–present)

• Jetta (09/2005–01/2011) – front – wheels must be balanced directly on the vehicle

• Jetta (02/2011–01/2013) – front – wheels must be balanced directly on the vehicle

• Beetle (11/2011–09/2016)

• Beetle (10/2016–08/2018)

• Beetle Cabriolet (03/2013–09/2016)

• Beetle Cabriolet (10/2016–08/2018)

• Passat Sedan (10/1996–02/2005) – 5 studs

• Passat Sedan (10/1996–02/2005) – 4 studs

• Passat Sedan (03/2005–12/2010)

• Passat Sedan (01/2011–10/2014)

• Passat Sedan (12/2014–07/2019)

• Passat Sedan (08/2019–10/2020)

• Passat Alltrack (03/2012–09/2015)

• Passat Alltrack (10/2015–07/2019)

• Passat Alltrack (08/2019–present)

• Passat CC (06/2008–02/2012)

• Passat CC (03/2012–11/2015)

• Passat Variant (03/1997–08/2005) – 4 studs

• Passat Variant (03/1997–08/2005) – 5 studs

• Passat Variant (09/2005–12/2010)

• Passat Variant (01/2011–10/2014)

• Passat Variant (11/2014–07/2019)

• Passat Variant (08/2019–11/2023)

• Phaeton (10/2002–06/2010)

• Phaeton (07/2010–04/2016)

• Scirocco (10/2008–08/2014)

• Scirocco (09/2014–09/2017)

• Sharan (05/1995–09/2010)

• Sharan (10/2010–08/2015)

• Sharan (09/2015–07/2020)

• Tiguan (12/2007–08/2011)

• Tiguan (09/2011–04/2016)

• Tiguan (05/2016–08/2020)

• Tiguan (09/2020–11/2023)

• Touran (05/2003–07/2010)

• Touran (08/2010–08/2015)

• Touran (09/2015–07/2026)

🔍 Why choose PILOT wheel spacers?

PILOT wheel spacers are manufactured from high-quality aluminium alloy and precision CNC-machined to ensure a safe, accurate fit. The A24 model is designed for vehicles with a 5x112 bolt pattern, 57.1 mm centre bore, and M14 thread, making it compatible with a wide range of Audi, Ford, SEAT, Škoda and Volkswagen models.

🔍 Order Now

Choose the PILOT A24 – 16 mm aluminium wheel spacer kit, 5x112, CB 57.1, for precise fitment and dedicated compatibility with hundreds of VAG Group vehicle applications.

❓Frequently Asked Questions (FAQ)

❓Does the kit include two or four wheel spacers?
The package contains two wheel spacers, sufficient for installation on one axle.

❓Are the wheel mounting bolts included?
No. The package includes only the screws required to secure the spacers to the hub where applicable. Wheel mounting bolts must be purchased separately.

❓What length should the new wheel bolts be?
As a general rule, the wheel bolts should be longer by the thickness of the spacer. For this model, bolts approximately 16 mm longer than the original ones are typically required.

❓What does the "front" designation mean?
It indicates that the spacers are intended for installation on the front axle only for the specified vehicle models.

❓Why is wheel balancing directly on the vehicle recommended?
For certain Volkswagen models, the manufacturer recommends balancing the wheels directly on the vehicle after spacer installation to eliminate potential vibrations.

❓Should the wheel bolts be checked after installation?
Yes. The tightening torque should be rechecked after the first few kilometres and periodically every 2,000–3,000 km.

❓Are these wheel spacers approved for use on public roads?
PILOT wheel spacers are primarily intended for racing, exhibition and off-road use. Their use on public roads must comply with the applicable legislation in the country where the vehicle is operated.
