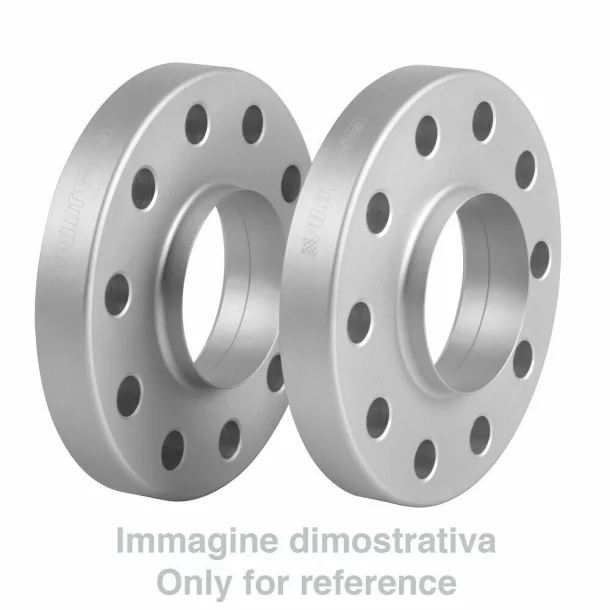

🏷️ Aluminium Wheel Spacers 16 mm, 2 pcs, A20, 5x108, CB 60.1

🔒 Widen the track for a sportier appearance and optimal wheel positioning

🔧 Precision-machined aluminium wheel spacers for dedicated fitment

The PILOT A20 wheel spacer kit is manufactured from high-quality aluminium alloy and precision CNC-machined to ensure accurate tolerances and a perfect fit for compatible vehicles.

Each spacer is machined from a solid aluminium alloy bar and moves each wheel 16 mm outward. This solution gives the vehicle a sportier appearance while providing the additional clearance required for certain wheel or brake system configurations.

The 60.1 mm hub-centric centre bore ensures precise centring on the hub, while the 5x108 bolt pattern is designed for compatible Renault applications specified by the manufacturer.

Important: The kit includes the screws required to secure the spacers to the hub only for vehicles that use this mounting system. Wheel mounting bolts are not included and must be ordered separately in the correct length and configuration.

✔️ Benefits

• Manufactured from high-strength aluminium alloy

• Precision CNC machining for accurate tolerances

• 16 mm thickness per spacer

• 5x108 bolt pattern

• 60.1 mm centre bore

• Precise hub-centric fit

• Positions the wheels closer to the fenders

• Gives the vehicle a sportier appearance

• Can provide additional clearance for certain wheels or brake systems

• High corrosion resistance

• Dedicated fitment for compatible applications

📦 Package Contents

• 2 × 16 mm aluminium wheel spacers

• 2 × Screws for securing the spacers to the hub, where required

• Installation instructions

Note: Wheel mounting bolts are NOT included and must be purchased separately.

🔧 Technical Specifications

• Model: A20

• Spacer thickness: 16 mm

• Number of holes: 5

• Bolt pattern (PCD): 5x108

• Centre bore (CB): 60.1 mm

• Thread diameter: M14

• Material: Aluminium alloy

• Manufacturing process: CNC machining

• Colour: Natural aluminium

• Quantity: 2 pieces

⚠️ Important Installation Recommendations

• Installation must be carried out by a qualified technician or an authorised automotive workshop.

• Thoroughly clean the hub contact surface before installing the spacer.

• Use only wheel bolts with the same dimensions, thread pitch and seat type as the original fasteners.

• The wheel bolt length must be increased by the thickness of the spacer.

• For a 16 mm spacer, the wheel bolts should generally be 16 mm longer than the original bolts.

• After installation, verify that there is a minimum clearance of 2 mm between the end of the wheel bolt and the components located behind the hub or inside the wheel assembly.

• Tighten the wheel bolts in a criss-cross pattern using a torque wrench.

• Apply the tightening torque specified by the vehicle manufacturer.

• Recheck the tightening torque after the first few kilometres.

• Check the wheel bolts periodically every 2,000–3,000 km.

• For vehicles fitted with modified suspension systems or aftermarket wheels, all clearances between the wheels, tyres, suspension and bodywork must be checked.

• For models marked "5 wheel bolts", verify the original wheel fastening configuration before installation.

⚠️ Liability Disclaimer

Cridem accepts no responsibility for property damage, personal injury or any other consequences resulting from the selection of an incompatible application, incorrect installation or improper use of this product.

PILOT wheel spacers are intended exclusively for racing, exhibition or off-road vehicles. Their use on public roads is permitted only if the product, vehicle and installation comply with the applicable legislation in the country of use.

🚗 Compatibility

Renault

• Clio III 3-door (10/2005–05/2007) – 5 wheel bolts

• Clio III 3-door (06/2007–04/2009) – 5 wheel bolts

• Clio III 3-door (05/2009–01/2013) – 5 wheel bolts

• Clio III 5-door (10/2005–05/2007) – 5 wheel bolts

• Clio III 5-door (06/2007–04/2009) – 5 wheel bolts

• Clio III 5-door (05/2009–01/2013) – 5 wheel bolts

• Clio III Sportour (02/2008–08/2013) – 5 wheel bolts

• Espace (11/2002–08/2012) – 5 wheel bolts

• Espace (09/2012–04/2015) – 5 wheel bolts

Renault

• Laguna III 5-door (10/2007–10/2010)

• Laguna III 5-door (11/2010–04/2013)

• Laguna III Sportour (10/2007–04/2013)

• Laguna III Sportour (05/2013–06/2016)

• Megane I 3-door (01/1996–08/2003) – 5 wheel bolts

• Megane I 5-door (01/1996–08/2003) – 5 wheel bolts

• Megane I Cabriolet (05/1997–06/2003) – 5 wheel bolts

• Megane I Estate (01/1999–09/2002) – 5 wheel bolts

• Megane II 3-door (10/2002–10/2008) – 5 wheel bolts

• Megane II Sedan (10/2003–10/2008) – 5 wheel bolts

• Megane II 5-door (10/2002–10/2008) – 5 wheel bolts

• Megane II Coupé-Cabriolet (01/2003–05/2010) – 5 wheel bolts

• Megane II Grandtour (09/2003–12/2005) – 5 wheel bolts

• Megane II Grandtour (01/2006–08/2009) – 5 wheel bolts

• Scenic RX4 (01/1999–12/2002)

• Vel Satis (04/2002–12/2009)

🔍 Why choose PILOT wheel spacers?

PILOT wheel spacers are manufactured from high-quality aluminium alloy and precision CNC-machined for maximum accuracy. The A20 model provides an exact fit for applications with a 5x108 bolt pattern, a 60.1 mm centre bore and an M14 thread, making it suitable for a wide range of Renault models.

🔍 Order Now

Choose the PILOT A20 aluminium wheel spacers, 16 mm, 5x108, CB 60.1, for precise installation and dedicated compatibility with numerous Renault vehicles.

❓Frequently Asked Questions (FAQ)

❓ Does this kit include two or four wheel spacers?
The kit includes two wheel spacers, enough for one axle.

❓ Are the wheel mounting bolts included?
No. The kit includes only the screws required to secure the spacers to the hub where applicable. Wheel mounting bolts must be ordered separately.

❓ What length should the new wheel bolts be?
Normally, the original wheel bolt length must be increased by the thickness of the spacer. For this model, wheel bolts approximately 16 mm longer are generally required.

❓ What does the "5 wheel bolts" note mean?
It indicates that the vehicle must be equipped with the original 5-bolt wheel fastening system. Compatibility should always be verified before installation.

❓ Is it necessary to recheck the wheel bolts after installation?
Yes. It is recommended to check the tightening torque after the first few kilometres and then every 2,000–3,000 km.

❓ Can these spacers be used with aftermarket wheels?
Yes, provided that compatibility, wheel bolt length and all clearances between the wheels, suspension and bodywork are thoroughly checked.

❓ Are these wheel spacers approved for public road use?
PILOT wheel spacers are primarily intended for racing, exhibition or off-road vehicles. Their use on public roads must comply with the legislation applicable in the country of use.
