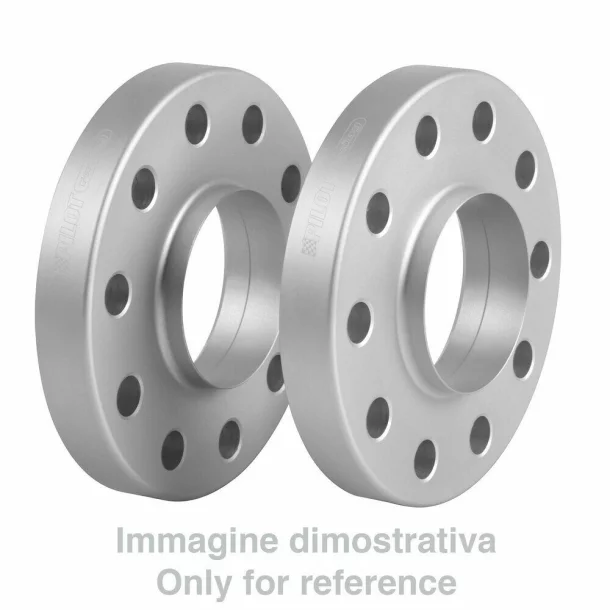

🏷️ Aluminium Wheel Spacers 16 mm, 2 pcs, A28, 5x114, CB 67.1

🔒 Widen the track for a sportier appearance and optimal wheel positioning

🔧 Precision CNC-machined aluminium wheel spacers engineered for vehicle-specific fitment

The PILOT A28 wheel spacer kit is manufactured from high-quality aluminium alloy and precision CNC-machined to ensure exact tolerances and a perfect fit for compatible vehicles.

Each spacer is machined from a solid aluminium alloy billet and moves each wheel 16 mm outward. This provides a sportier appearance while creating additional clearance for certain wheel or brake system configurations.

The 67.1 mm centre bore ensures precise hub centring, while the 5x114 bolt pattern is designed for the compatible vehicle applications specified by the manufacturer.

Important: The kit includes only the bolts required to secure the spacers to the hub on vehicles that require this mounting system. The wheel mounting bolts are not included and must be ordered separately in the correct length and specification.

✔️ Benefits

• Manufactured from high-strength aluminium alloy

• Precision CNC-machined for exact tolerances

• 16 mm thickness per spacer

• 5x114 bolt pattern

• 67.1 mm centre bore

• Precise hub-centric fitment

• Positions the wheels closer to the wheel arches

• Enhances the vehicle's sporty appearance

• May provide additional clearance for certain wheels or brake systems

• Excellent corrosion resistance

• Vehicle-specific design for the listed applications

📦 Package Contents

• 2 × 16 mm aluminium wheel spacers

• 2 × Bolts for securing the spacers to the hub, where required

• Installation instructions

Note: Wheel mounting bolts are NOT included and must be purchased separately.

🔧 Technical Specifications

• Model: A28

• Spacer thickness: 16 mm

• Number of holes: 5

• Bolt pattern (PCD): 5x114

• Centre bore (CB): 67.1 mm

• Thread size: M12

• Material: Aluminium alloy

• Manufacturing process: CNC machining

• Colour: Natural aluminium

• Quantity: 2 pcs

⚠️ Important Installation Recommendations

• Installation must be carried out by a qualified technician or an authorised workshop.

• Thoroughly clean the hub mounting surface before installation.

• Use only wheel bolts with the same thread, seat type and specifications as the original ones.

• The wheel bolt length must be increased by the thickness of the spacer.

• For a 16 mm spacer, wheel bolts should generally be 16 mm longer than the original ones.

• After installation, ensure there is at least 2 mm clearance between the end of the wheel bolt and the components behind the hub or inside the wheel assembly.

• Tighten the wheel bolts in a criss-cross pattern using a torque wrench.

• Follow the tightening torque specified by the vehicle manufacturer.

• Recheck the tightening torque after the first few kilometres of driving.

• Check the wheel bolt torque every 2,000–3,000 km.

• On vehicles fitted with modified suspension or aftermarket wheels, verify all clearances between the wheels, tyres, suspension and bodywork.

• For vehicles requiring replacement of the wheel studs, this operation must be carried out only by a professional tyre workshop.

• Always verify the compatibility and length of the original wheel bolts before installation.

⚠️ Liability Disclaimer

Cridem accepts no responsibility for material damage, personal injury or any other consequences resulting from the selection of an incompatible application, incorrect installation or improper use of the product.

PILOT wheel spacers are intended exclusively for racing, exhibition or off-road use. Their use on public roads is permitted only where the product, vehicle and installation comply with the applicable legislation of the country of use.

🚗 Compatibility

Citroën

• C-Crosser (06/2007–01/2013) – Verify the original wheel bolts.

• C4 Aircross (04/2012–12/2017)

Dodge

• Caliber (06/2006–12/2011) – Verify the original wheel bolts. Alloy wheels only.

Hyundai

• Coupé (01/2002–12/2009) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Genesis Coupé (01/2011–05/2014) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Grand Santa Fe (03/2014–10/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i30 3-door (01/2013–04/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i30 3-door (05/2015–12/2016) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i30 5-door (09/2007–02/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i30 5-door (03/2012–04/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i30 5-door (05/2015–12/2016) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i30 CW (04/2008–08/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i30 Wagon (09/2012–04/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i30 Wagon (05/2015–04/2017) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i40 Sedan (04/2012–06/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i40 Wagon (07/2011–06/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• i40 Wagon (07/2015–08/2019) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• ix20 (11/2010–07/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• ix20 (08/2015–12/2020) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• ix35 (03/2010–08/2013) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• ix35 (09/2013–12/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• ix55 (04/2009–09/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Matrix (11/2001–10/2010) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Santa Fe (01/2001–02/2006) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Santa Fe (03/2006–02/2011) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Santa Fe (03/2011–09/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Santa Fe (10/2012–01/2016) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Santa Fe (02/2016–10/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Tucson (08/2004–02/2010) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Tucson (09/2015–08/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Tucson (09/2018–10/2020) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

Jeep

• Compass (11/2006–03/2011) – Verify the original wheel bolts.

• Compass (07/2013–07/2015) – Verify the original wheel bolts.

• Patriot (10/2007–12/2012) – Verify the original wheel bolts.

Kia

• Carens (07/2002–11/2006) – Verify the original wheel bolts.

• Carens (12/2006–04/2013) – Verify the original wheel bolts.

• Carens (05/2013–06/2019) – Verify the original wheel bolts.

• Carnival (04/1999–05/2006) – Verify the original wheel bolts.

• Cee'd 5-door (02/2007–09/2009) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Cee'd 5-door (10/2009–04/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Cee'd 5-door (05/2012–09/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Cee'd 5-door (10/2015–09/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Cee'd Sportswagon (09/2012–09/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Cee'd Sportswagon (10/2015–09/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Cee'd Sporty Wagon (09/2007–08/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Optima Sedan (02/2016–12/2019) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Optima Plug-in Hybrid (10/2016–12/2019) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Optima Sportwagon (10/2016–12/2019) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Pro Cee'd 3-door (01/2008–08/2011) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Pro Cee'd 3-door (06/2013–12/2014) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Sorento (11/2009–09/2012) – Verify the original wheel bolts.

• Sorento (10/2012–01/2015) – Verify the original wheel bolts.

• Sorento (02/2015–01/2018) – Verify the original wheel bolts. Alloy wheels only.

• Sorento (02/2018–10/2020) – Verify the original wheel bolts. Alloy wheels only.

• Soul (03/2009–12/2011) – Verify the original wheel bolts.

• Soul (01/2012–12/2013) – Verify the original wheel bolts.

• Soul (01/2014–10/2016) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Soul (11/2016–12/2019) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Sportage (07/1993–10/2004) – Verify the original wheel bolts.

• Sportage (11/2004–08/2010) – Verify the original wheel bolts.

• Sportage (09/2010–02/2016) – Verify the original wheel bolts.

• Sportage (03/2016–10/2018) – Verify the original wheel bolts.

• Sportage (11/2018–11/2021) – Verify the original wheel bolts.

• Venga (02/2010–12/2014) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Venga (01/2015–11/2019) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

Mazda

• Mazda 3 Sedan (01/2004–10/2010) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 3 Sedan (11/2010–09/2013) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 3 5-door (01/2004–03/2009) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 3 5-door (04/2009–12/2013) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 3 5-door (01/2014–02/2017) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 3 5-door (03/2017–12/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 5 5-door (08/2005–10/2010) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 5 5-door (11/2010–10/2013) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 6 Sedan (10/2003–03/2008) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 6 Sedan (04/2008–12/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 6 Sedan (01/2013–01/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 6 Sedan (02/2015–10/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 6 Wagon (09/2002–03/2008) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 6 Wagon (04/2008–12/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 6 Wagon (01/2013–01/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda 6 Wagon (02/2015–10/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda CX-3 (06/2015–10/2018) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda CX-3 (11/2018–09/2022) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda CX-5 (04/2012–01/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda CX-5 (02/2015–05/2017) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda MPV (06/2000–04/2006) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda MX-5 (01/2006–09/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda Premacy (03/1999–07/2005) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda RX-8 (04/2003–06/2011) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Mazda Tribute (09/2001–04/2006) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

Mitsubishi

• ASX (07/2010–12/2012) – Verify the original wheel bolts.

• ASX (01/2013–10/2016) – Verify the original wheel bolts.

• ASX (11/2016–07/2019) – Verify the original wheel bolts.

• ASX (08/2019–12/2021) – Verify the original wheel bolts.

• Colt 3-door (01/2009–05/2012) – Verify the original wheel bolts. Check whether the spacers can be installed. They cannot replace the original wheel bolts.

• Colt 5-door (01/2009–05/2012) – Verify the original wheel bolts. Check whether the spacers can be installed. They cannot replace the original wheel bolts.

• Lancer Sedan (09/2003–06/2008, 5 bolts) – Verify the original wheel bolts. Check whether the spacers can be installed. They cannot replace the original wheel bolts.

• Lancer Sedan (07/2008–12/2011) – Verify the original wheel bolts. Check whether the spacers can be installed. They cannot replace the original wheel bolts.

• Lancer Evolution (07/2008–12/2012) – Verify the original wheel bolts. Check whether the spacers can be installed. They cannot replace the original wheel bolts.

• Lancer Sportback (07/2008–12/2011)

• Lancer Estate (09/2003–06/2008, 5 bolts) – Verify the original wheel bolts. Check whether the spacers can be installed. They cannot replace the original wheel bolts.

• Outlander (05/2003–01/2007) – Verify the original wheel bolts.

• Outlander (02/2007–02/2010) – Verify the original wheel bolts.

• Outlander (03/2010–09/2012) – Verify the original wheel bolts.

• Outlander (10/2012–09/2015) – Verify the original wheel bolts.

• Outlander (10/2015–12/2021) – Verify the original wheel bolts.

• Pajero Pinin 3-door (07/1999–12/2006) – Verify the original wheel bolts.

• Pajero Pinin 5-door (07/1999–12/2006) – Verify the original wheel bolts.

• Space Runner (10/1991–12/2001) – Verify the original wheel bolts.

• Space Wagon (07/1998–01/2004) – Verify the original wheel bolts.

Peugeot

• 4007 (07/2008–12/2012) – Verify the original wheel bolts.

• 4008 (04/2012–12/2016) – Verify the original wheel bolts.

🔍 Why choose PILOT A28 wheel spacers?

PILOT A28 wheel spacers are manufactured from high-quality aluminium alloy and precision CNC-machined to ensure safe installation and an exact fit. With a 16 mm thickness, 5x114 bolt pattern, 67.1 mm centre bore and M12 thread, they are compatible with a wide range of Citroën, Dodge, Hyundai, Jeep, Kia, Mazda, Mitsubishi and Peugeot models, providing a sportier appearance and optimal wheel positioning.

🔍 Order now!

Choose the PILOT A28 aluminium wheel spacer kit – 16 mm, 5x114, CB 67.1 and benefit from premium-quality materials, precision CNC machining and vehicle-specific compatibility for numerous Citroën, Dodge, Hyundai, Jeep, Kia, Mazda, Mitsubishi and Peugeot models.

❓Frequently Asked Questions

❓Does the kit include two or four wheel spacers?
The package contains two wheel spacers, enough to equip one axle.

❓Are the wheel mounting bolts included?
No. The kit includes only the bolts required to secure the spacers to the hub, where applicable. Wheel mounting bolts must be ordered separately.

❓Why do some vehicle models require wheel stud replacement?
On certain vehicles, the original wheel studs are not long enough after installing the spacers. Replacement must be carried out by a professional tyre workshop.

❓What wheel bolt length is required?
As a general rule, the wheel bolts should be 16 mm longer than the original ones, matching the thickness of the spacer.

❓Should the wheel bolts be rechecked after installation?
Yes. The tightening torque should be checked after the first few kilometres of driving and then every 2,000–3,000 km.

❓Can these spacers be used with aftermarket wheels?
Yes, provided that the compatibility between the wheels, bolts, suspension and bodywork has been verified before installation.

❓Are these wheel spacers approved for road use?
PILOT wheel spacers are primarily intended for racing, exhibition and off-road use. Their use on public roads is permitted only if they comply with the applicable legislation in the country of use.
