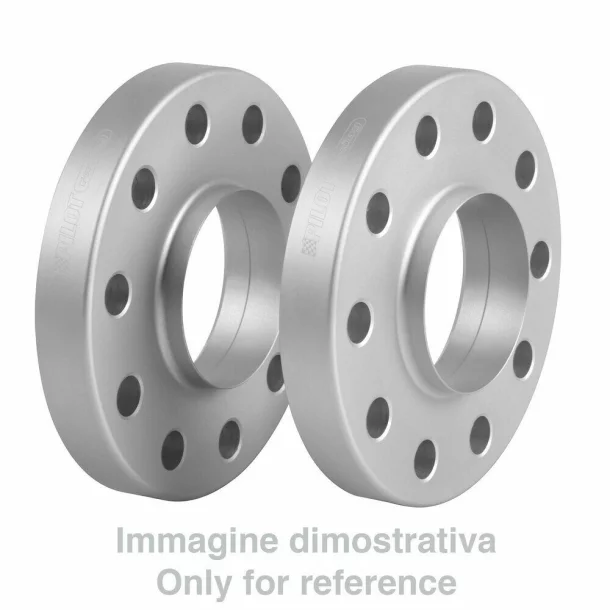

🏷️ Aluminium Wheel Spacers 16 mm, 2 pcs, A29, 5x120, CB 72.6

🔒 Wider track for a sportier appearance and optimal wheel positioning

🔧 CNC-machined aluminium wheel spacers designed specifically for BMW models

The PILOT A29 wheel spacer kit is manufactured from high-quality aluminium alloy and precision CNC-machined to ensure exact tolerances and a perfect fit for compatible BMW models.

Each spacer is produced from a solid aluminium alloy bar and moves the wheel 16 mm further outward, giving the vehicle a sportier appearance while providing additional clearance for certain wheel and brake configurations.

The 72.6 mm centre bore ensures precise hub centring, while the 5x120 bolt pattern is specifically designed for compatible BMW applications.

Important: The kit includes the bolts required to secure the spacers to the hub only on vehicles that require this mounting system. Wheel mounting bolts are not included and must be ordered separately in the appropriate length and specification.

✔️ Benefits

• Manufactured from high-strength aluminium alloy

• Precision CNC-machined for exact tolerances

• 16 mm thickness per spacer

• 5x120 bolt pattern

• 72.6 mm centre bore

• Precise hub-centric design

• Positions the wheels closer to the wheel arches

• Provides a sportier appearance

• Can create additional clearance for certain wheel and brake configurations

• Excellent corrosion resistance

• Vehicle-specific design for compatible BMW models

📦 Package Contents

• 2 × 16 mm aluminium wheel spacers

• 2 × Hub mounting bolts (where required)

• Installation instructions

Note: Wheel mounting bolts are NOT included and must be purchased separately.

🔧 Technical Specifications

• Model: A29

• Spacer thickness: 16 mm

• Number of holes: 5

• Bolt pattern (PCD): 5x120

• Centre bore (CB): 72.6 mm

• Thread: M12

• Material: Aluminium alloy

• Manufacturing process: CNC machining

• Colour: Natural aluminium

• Quantity: 2 pcs

⚠️ Important Installation Recommendations

• Installation must be carried out only by qualified personnel or an authorised workshop.

• Thoroughly clean the hub mounting surface before installation.

• Use only wheel bolts with the same thread type and seating profile as the original ones.

• The wheel bolt length must be increased by the thickness of the spacer.

• For 16 mm spacers, the wheel bolts should generally be 16 mm longer than the original bolts.

• After installation, ensure there is at least 2 mm of clearance between the end of the wheel bolt and the components behind the hub or inside the wheel assembly.

• Tighten the wheel bolts in a criss-cross pattern using a torque wrench.

• Follow the tightening torque specified by the vehicle manufacturer.

• Recheck the tightening torque after the first few kilometres of driving.

• Inspect the wheel bolts regularly every 2,000–3,000 km.

• On vehicles fitted with aftermarket wheels or modified suspension, verify the clearance between the wheels, tyres, suspension and bodywork.

• For vehicles that require wheel stud replacement, this operation must be carried out exclusively by a professional tyre workshop.

• Always verify the compatibility and length of the original wheel bolts before installation.

⚠️ Liability Disclaimer

Cridem accepts no responsibility for property damage, personal injury or any other consequences resulting from the use of an incompatible application, incorrect installation or improper use of the product.

PILOT wheel spacers are primarily intended for racing, exhibition and off-road use. Their use on public roads is permitted only if the product, vehicle and installation comply with the applicable legislation.

🚗 Compatibility

BMW

• 1 Series (E81) (03/2007–06/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 1 Series (E87) (09/2004–02/2007) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 1 Series (E87) (03/2007–08/2011) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 1 Series Convertible (E88) (03/2008–09/2011) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 1 Series Coupé (E82) (09/2007–12/2013) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Sedan (E36) (10/1990–02/1998) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Sedan (E46) (03/1998–02/2005) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Sedan (E90) (03/2005–08/2008) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Sedan (E90) (09/2008–01/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Convertible (E93) (03/2007–12/2013) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Compact (E36) (08/1994–05/2000) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Compact (E46) (06/2000–12/2005) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Coupé (E36) (04/1992–03/1999) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Coupé (E46) (04/1999–08/2006) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Coupé (E92) (09/2006–12/2013) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Touring (E36) (08/1994–08/1999) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Touring (E46) (09/1999–08/2005) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Touring (E91) (09/2005–08/2008) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 3 Series Touring (E91) (09/2008–05/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 5 Series Sedan (E60) (07/2003–12/2009) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 5 Series Touring (E61) (04/2004–05/2010) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 6 Series Convertible (E64) (04/2004–02/2011) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 6 Series Coupé (E63) (01/2004–06/2011) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 7 Series (E32) (01/1986–04/1994) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• 7 Series (E38) (05/1994–10/2001) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• X1 (E84) (10/2009–03/2012) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• X1 (E84) (04/2012–10/2015) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Z4 Roadster (E85/E86) (01/2003–04/2009) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Z4 Roadster (E89) (05/2009–02/2013) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

• Z4 Roadster (E89) (03/2013–12/2016) – Contact a professional tyre workshop for wheel stud replacement. Verify the original wheel bolts.

🔍 Why choose PILOT A29 wheel spacers?

PILOT A29 wheel spacers are manufactured from high-quality aluminium alloy and precision CNC-machined to ensure safe installation and a perfect fit. With a 16 mm thickness, 5x120 bolt pattern, 72.6 mm centre bore and M12 thread, they are compatible with numerous BMW models, providing a sportier appearance and optimal wheel positioning.

🔍 Order now!

Choose the PILOT A29 aluminium wheel spacer kit – 16 mm, 5x120, CB 72.6 and benefit from premium-quality materials, precision CNC machining and vehicle-specific compatibility for numerous BMW models.

❓Frequently Asked Questions (FAQ)

❓Does the kit include two or four wheel spacers?
The package contains 2 wheel spacers, enough to equip one axle.

❓Are the wheel mounting bolts included?
No. The kit includes only the bolts required to secure the spacers to the hub, where applicable. Wheel mounting bolts must be ordered separately.

❓Why do some BMW models require wheel stud replacement?
On certain BMW models, the original wheel studs are not long enough after installing the spacers. Replacement must be carried out by a professional tyre workshop.

❓What wheel bolt length is required?
As a general rule, the wheel bolts should be 16 mm longer than the original ones, matching the thickness of the spacer.

❓Should the wheel bolts be rechecked after installation?
Yes. The tightening torque should be checked after the first few kilometres of driving and then every 2,000–3,000 km.

❓Can these spacers be used with aftermarket wheels?
Yes, provided that the compatibility between the wheels, bolts, suspension and bodywork has been verified before installation.

❓Are these wheel spacers approved for road use?
PILOT wheel spacers are primarily intended for racing, exhibition and off-road use. Their use on public roads is permitted only if they comply with the applicable legislation in the country of use.
